24V 119652-29 Lamb Electric

Description

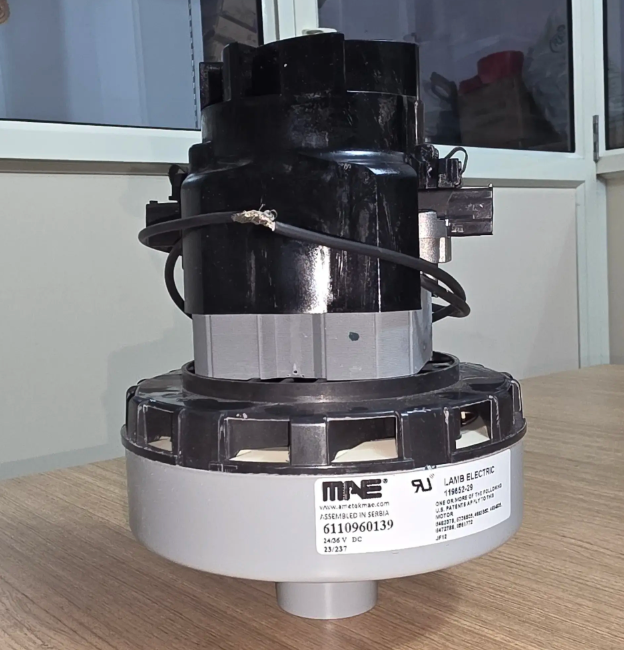

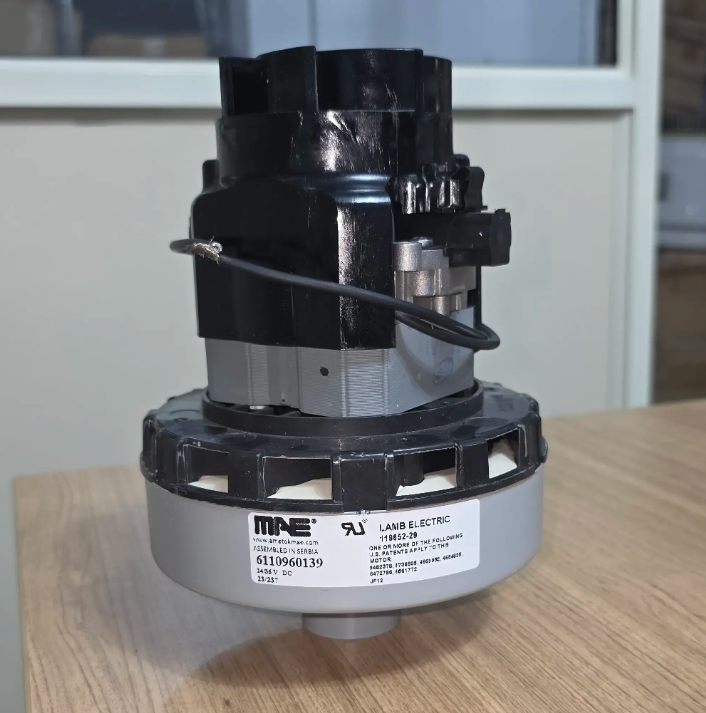

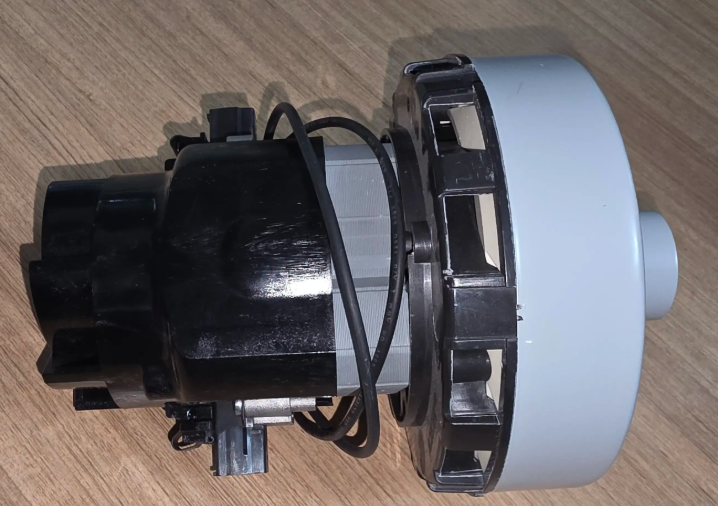

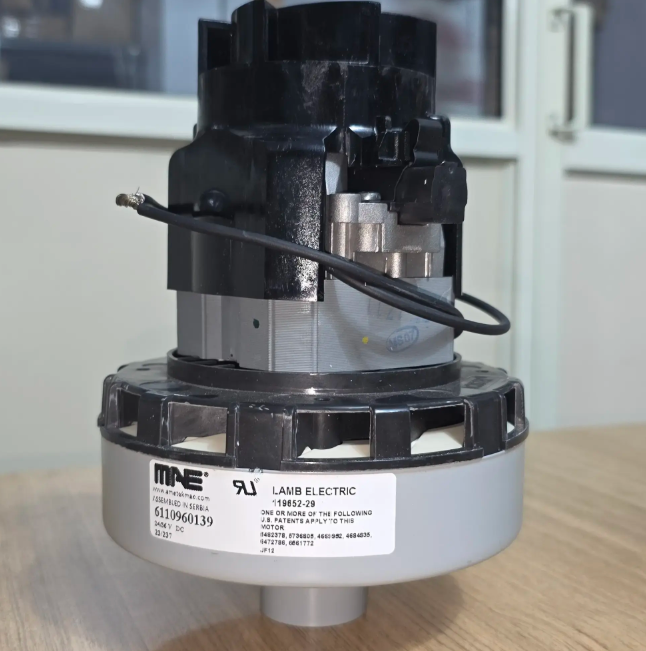

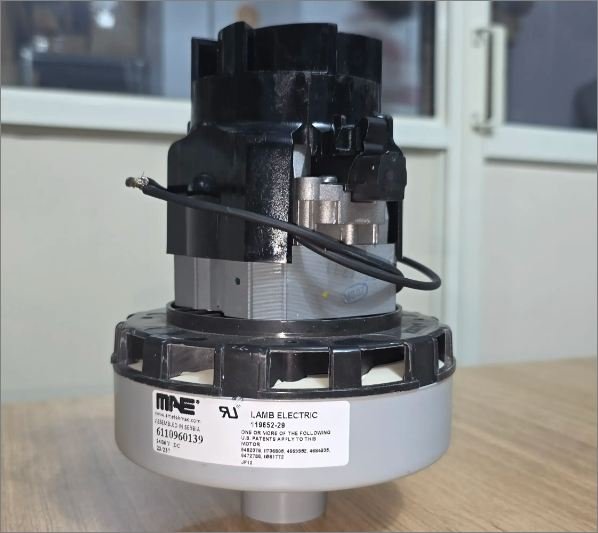

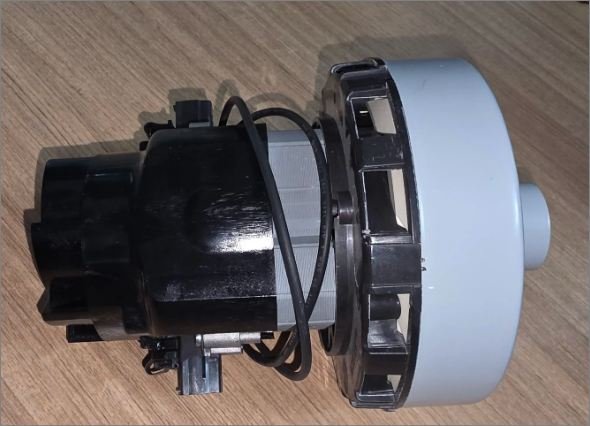

Ametek Lamb 119652-29 DC Vacuum Motor

Overview
119652-29 is a premium Ametek Lamb motor used in high-end cleaning machines like scrubber driers, ride-on sweepers, and industrial vacuum systems.

Known for low noise (Acustek series) and stable suction performance.

Technical Specifications
Voltage: 24V DC
Frame Size: 5.7 inch
Stage: 1 Stage
Motor Type: Brushed DC (Peripheral Bypass)
Series: Acustek (Low Noise)
Power: ~350–375W range
Airflow: up to ~107 CFM
Vacuum Pressure: up to ~160″ H₂O
Bearing: Double Ball Bearing

Applications
Scrubber Drier Machines
Ride-on Cleaning Machines
Industrial Wet & Dry Vacuum
Battery-operated cleaning equipment

Key Features
Low Noise (Acustek technology)
Stable suction for long-duty use
Easy replacement (standard 5.7″ frame)
Better cooling vs normal motors
Premium OEM motor (used in imported machines)

Important Business Insight

Ye motor 600W nahi hai → approx 375W category

Agar aap scrubber drier brush drive / traction ke liye use kar rahe ho → ye motor suitable nahi
Ye mainly suction/vacuum motor hai
