Ametek -Lamb » Lamb Ametek 119758-18 2-stage 5.7″ vacuum motor, 24 volt

Description

DESCRIPTION

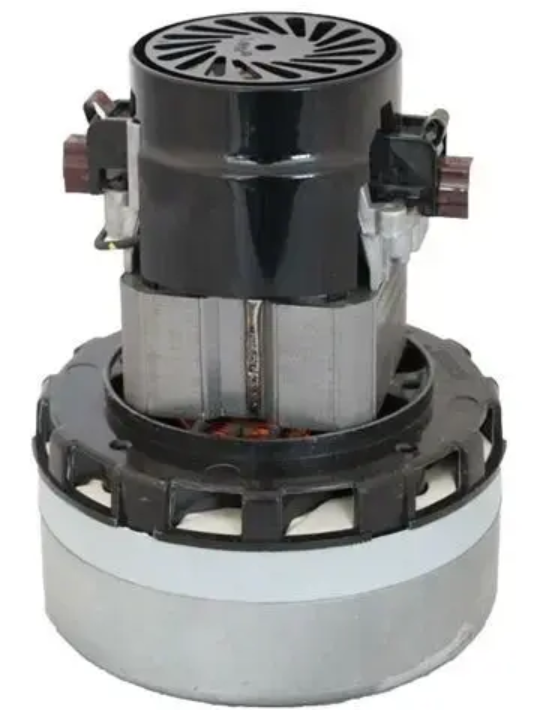

New Lamb Ametek 119758-18 motor is 2-stage, 5.7 inch, 24 volt.

This motor has sealed bearings in it so dust and dirt will not get into the system. This allows for a longer motor life.

DON’T RISK PREMATURE FAILURE FOR YOUR NEW MOTOR!

We HIGHLY recommend the maximum protection of your motor by using our exclusive Filtered Motor Gasket, part #MTR1500. Our Filtered Motor Gasket is the only one of its kind and only available from Central Vacuum Factory! It is specially designed by our engineers to provide your motor with years of trouble free service by filtering out dust and dirt BEFORE they reach your motor and damaging it! The filtered motor gasket fits flush and is as easy to apply as a regular gasket and will not add any height to your motor during mounting!

For our standard motor gasket, see our part #MTR512.

Protect your motors from dust and dirt by using a motor filter. This prolongs the life of your motor and is a must for all motors. See our standard motor filter part #MTR553.

Uses motor brushes part MTR519.

Motor Specs

Motor Type: Bypass
Discharge: Acustek
Bearings: Double Ball Bearing
Sealed Vacuum: 48.5 inches
Maximum Air Watts: 102
Maximum Air Flow: 63.2 CFM
Maximum Amps: 17.10
Motor Speed: 15,840 RPM
